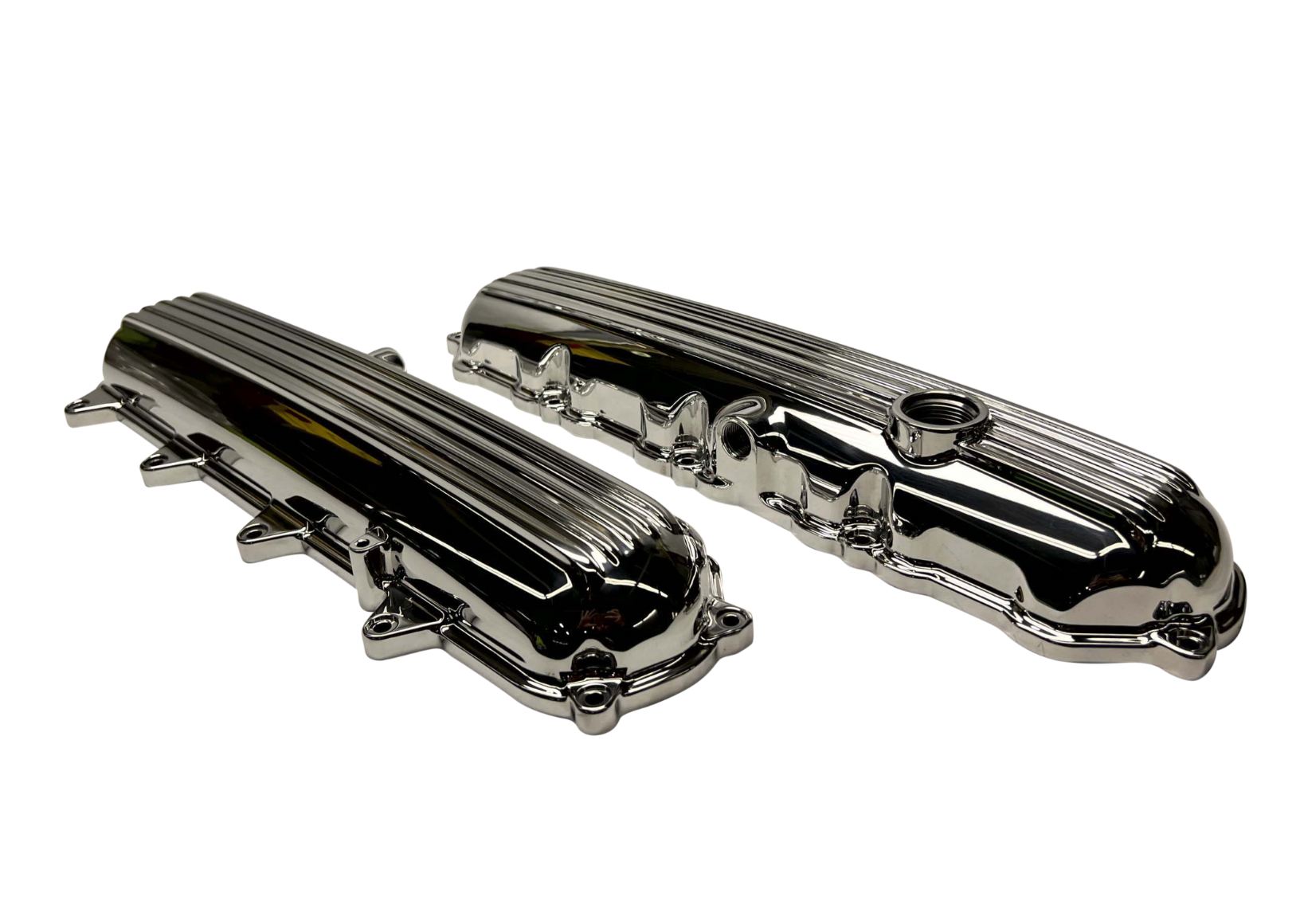

• Pair of polished billet aluminum valve covers for GM LT1, LT4 and LT5 engines

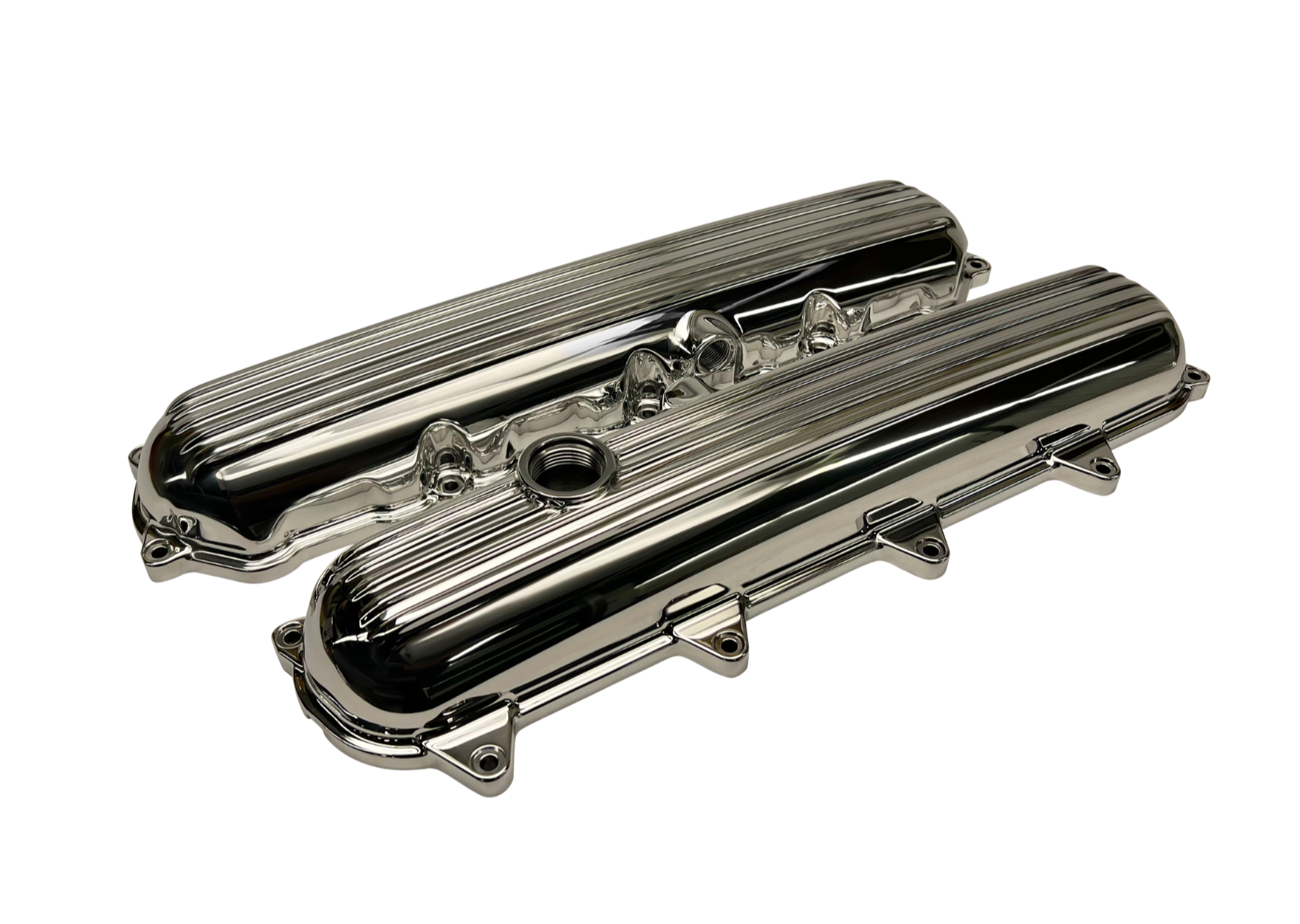

  • Polished billet LT valve covers angled to show the finned tops and the oil fill cap

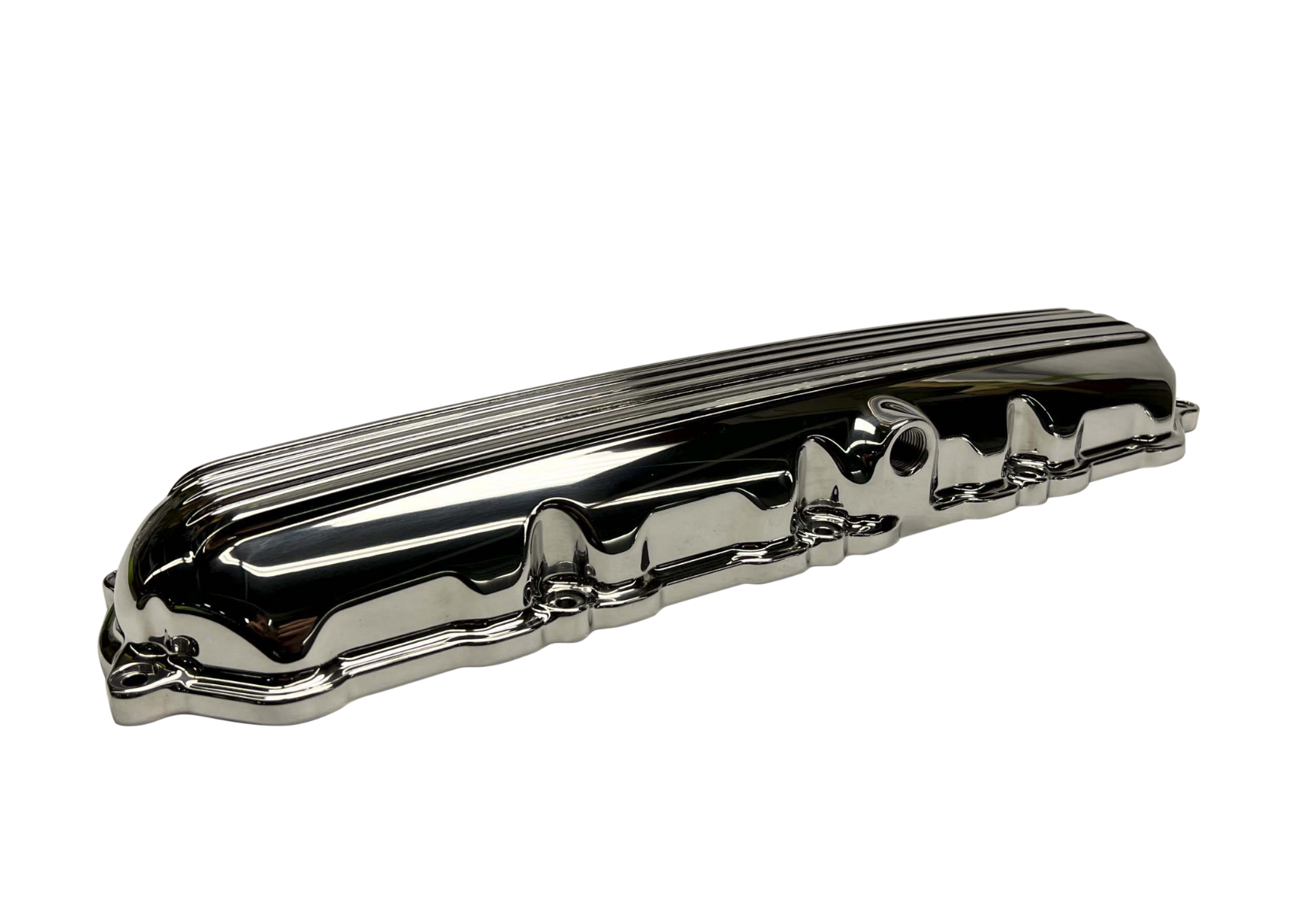

  • Single polished billet LT valve cover viewed from the side showing the bolt flange

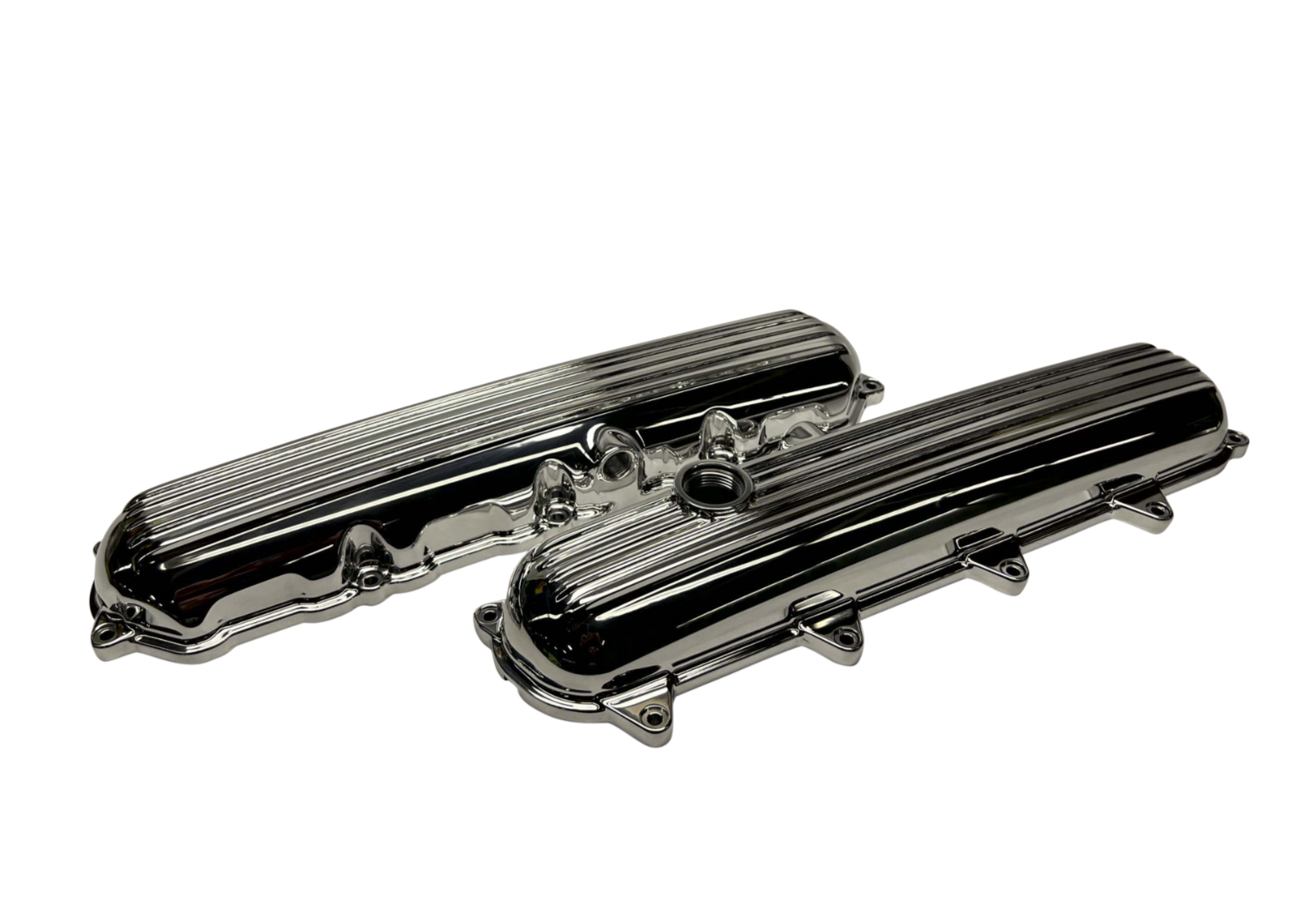

  • Polished LT1 valve covers set side by side showing the machined fin pattern
  • Polished billet valve covers for GM LT engines shown from the front

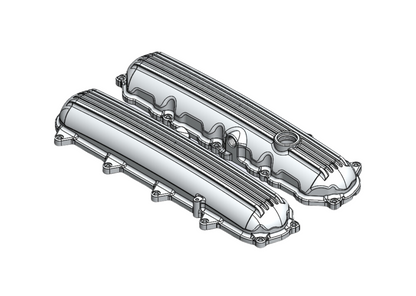

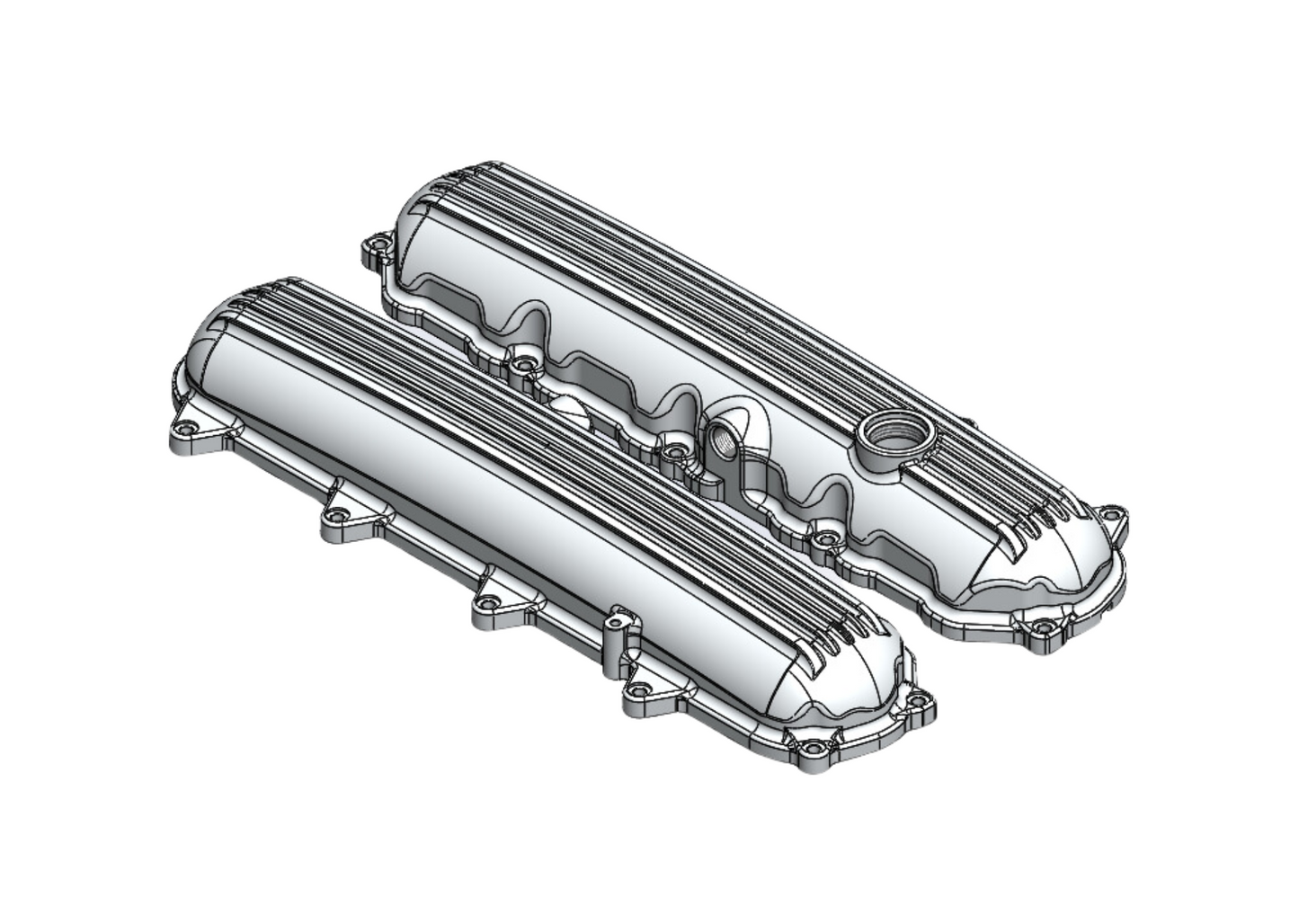

  • CAD render of the billet LT valve cover pair with the oil fill port on the lower cover

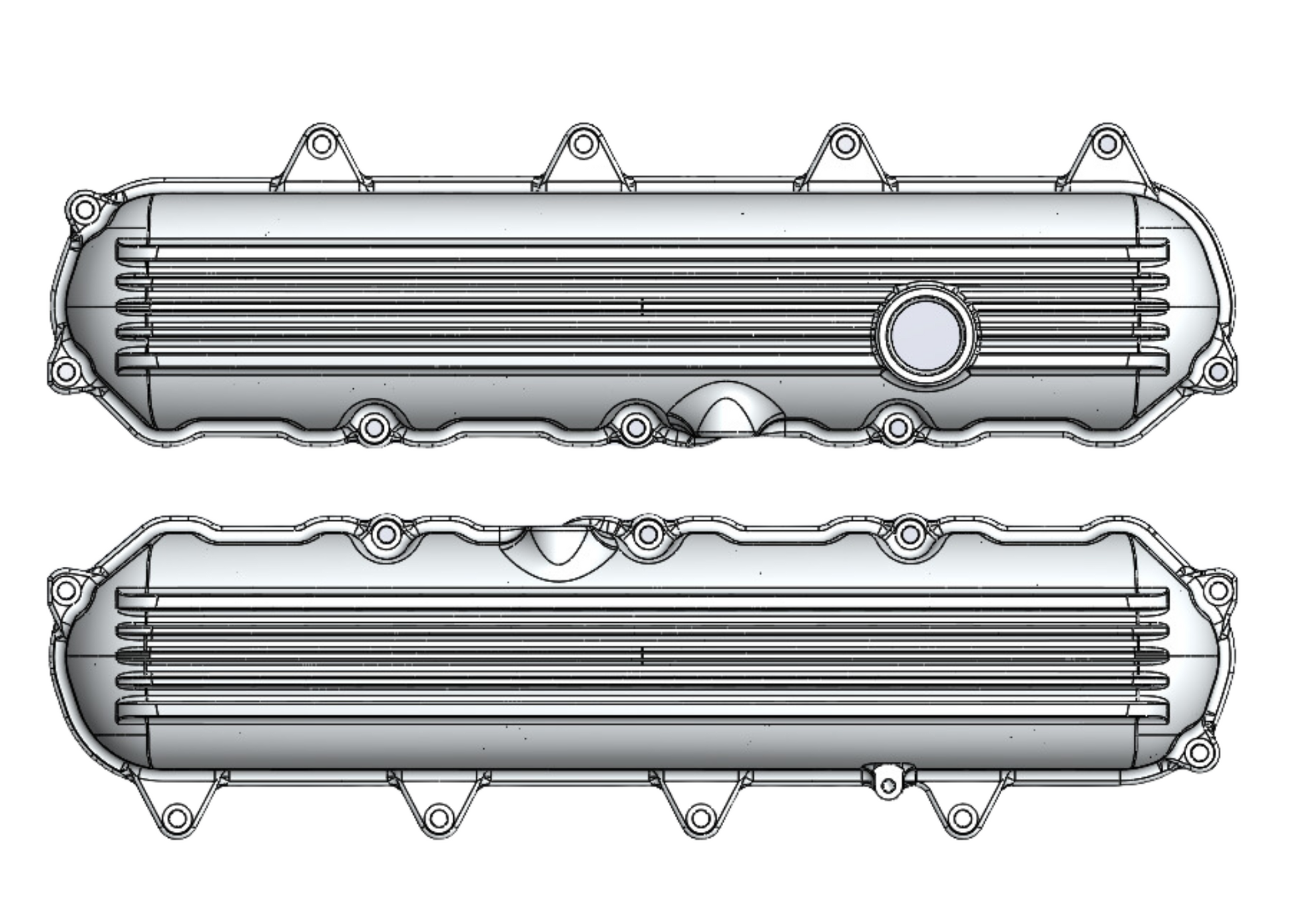

  • CAD render of the LT valve covers showing the machined fin detail across the tops

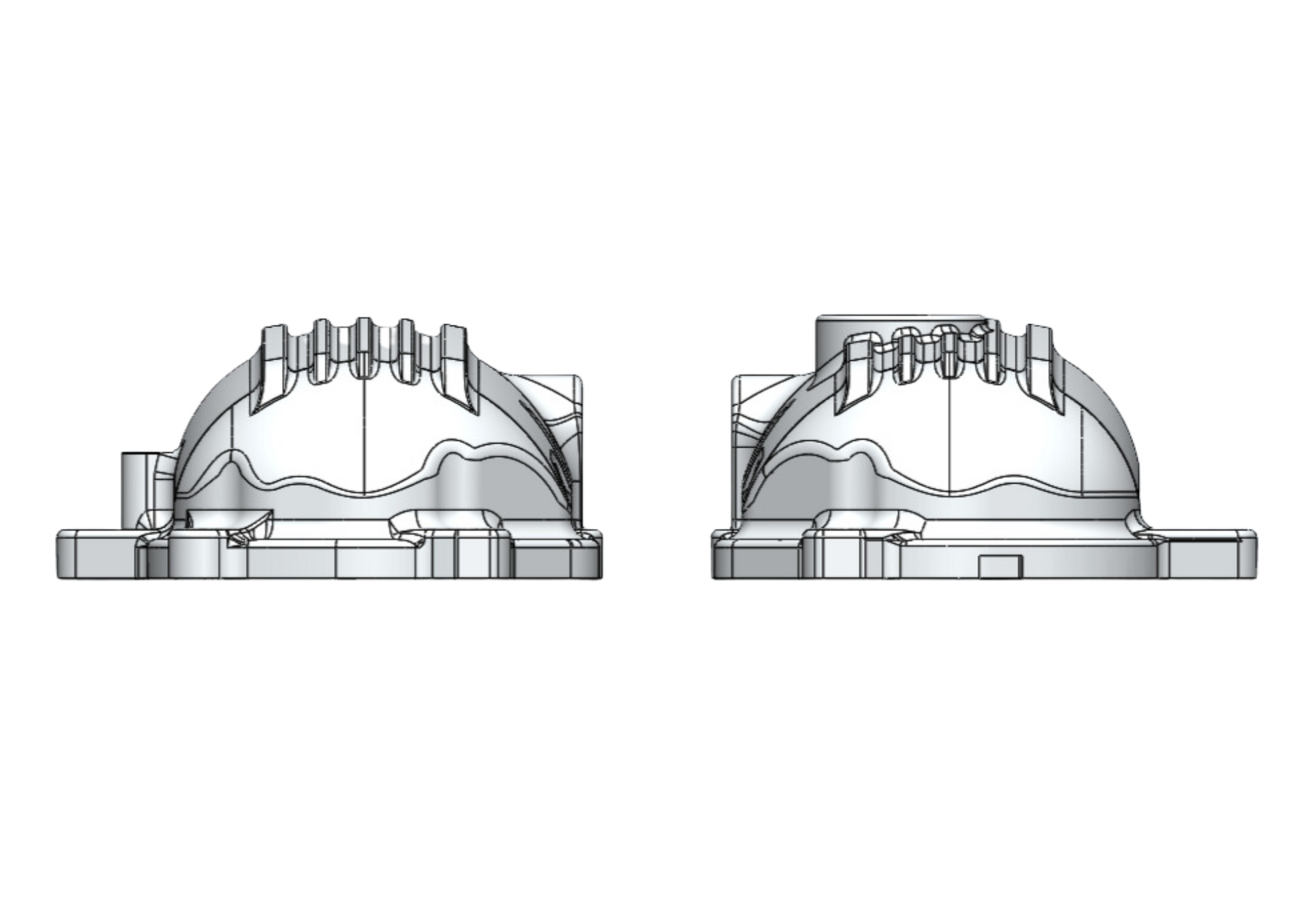

  • CAD end view of the LT valve cover pair showing the profile and mounting flange
1 8

Rad Rides Performance Parts

GM LT1/LT4/LT5 Billet Valve Covers

GM LT1/LT4/LT5 Billet Valve Covers

$2,795.00
$2,795.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

Machined billet valve covers for LT1/LT4/LT5 GM engines

Included

  • Machined 6061 valve covers
  • Stainless steel baffles
  • Oil fill cap
  • 20 ARP Stainless 6 Point 6mm x 1.00 thread, 20mm length bolts
  • 1 ARP Stainless 6 Point 6mm x 1.00 thread, 25mm length bolts (dip stick bolt)

Finish

Polished

Additional information

  • Material: 6061 aluminum
  • Valve cover side specific: No
  • Uses stock valve cover gaskets (gaskets NOT included) (Part #12619787)
  • Oil fill thread callout: 1-1/4 - 12 with O-ring
  • PVC fitting callout: -8 fitting (3/4 - 16) (recommended XRP fitting, part #989108)
