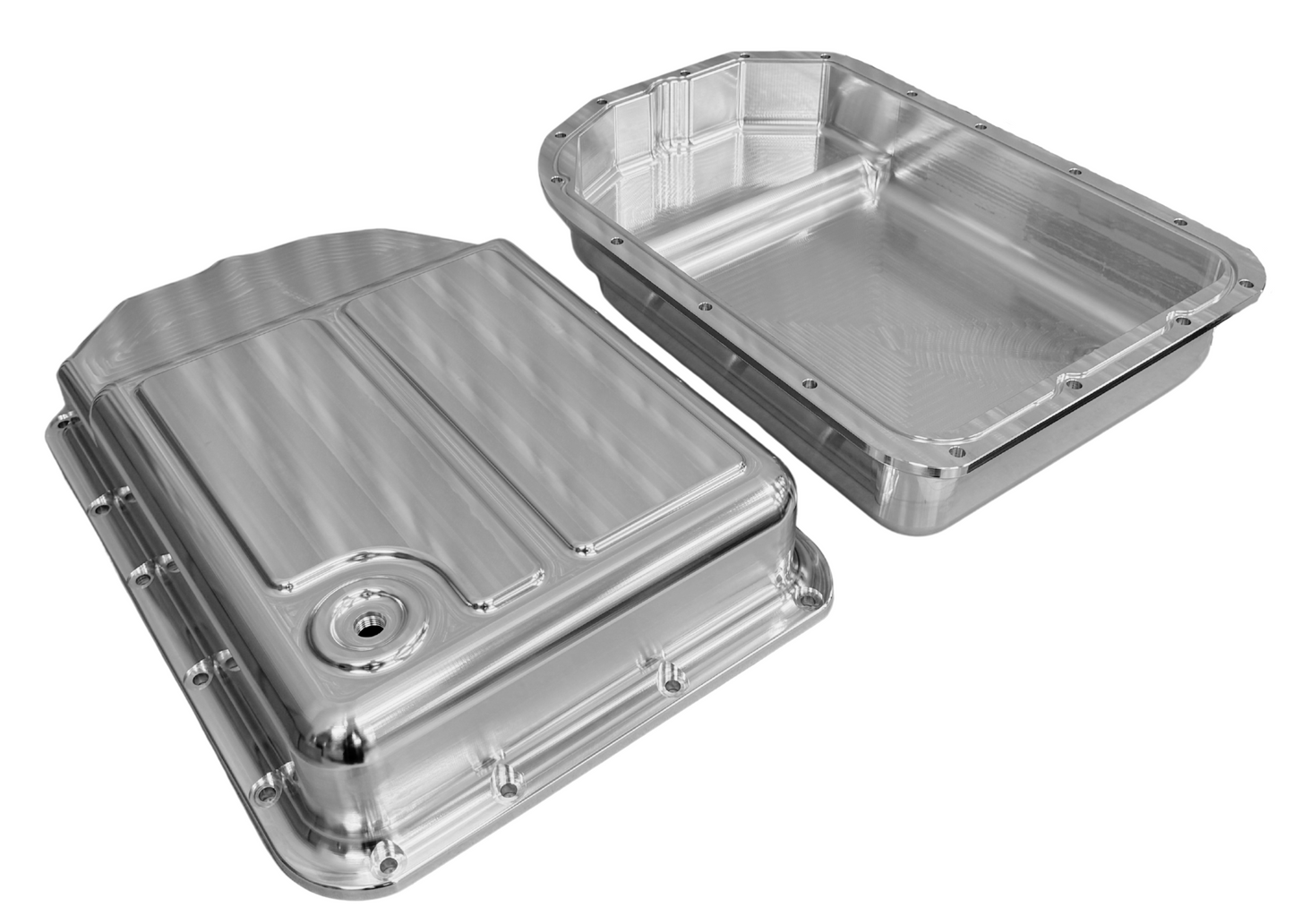

• Two billet aluminum 4L80E transmission pans, one upright and one on its side showing the machined face
  • Machined 4L80E billet transmission pans on the bench in the Rad Rides shop
  • Billet 4L80E transmission pan angled to show the machined top face and bolt flange
  • Billet 4L80E transmission pan showing the drain plug boss

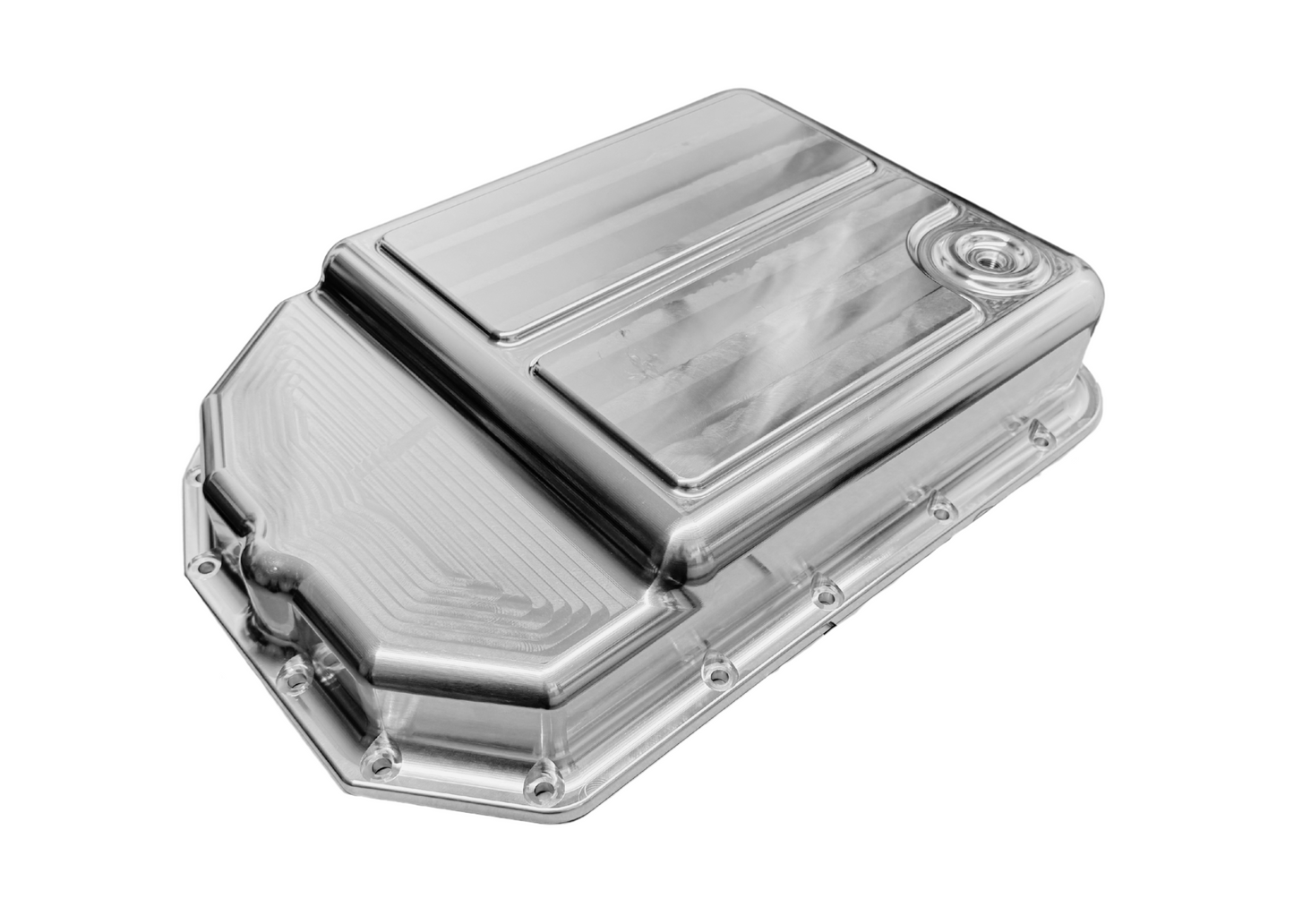

  • Billet 4L80E transmission pan viewed from the corner showing the raised center section

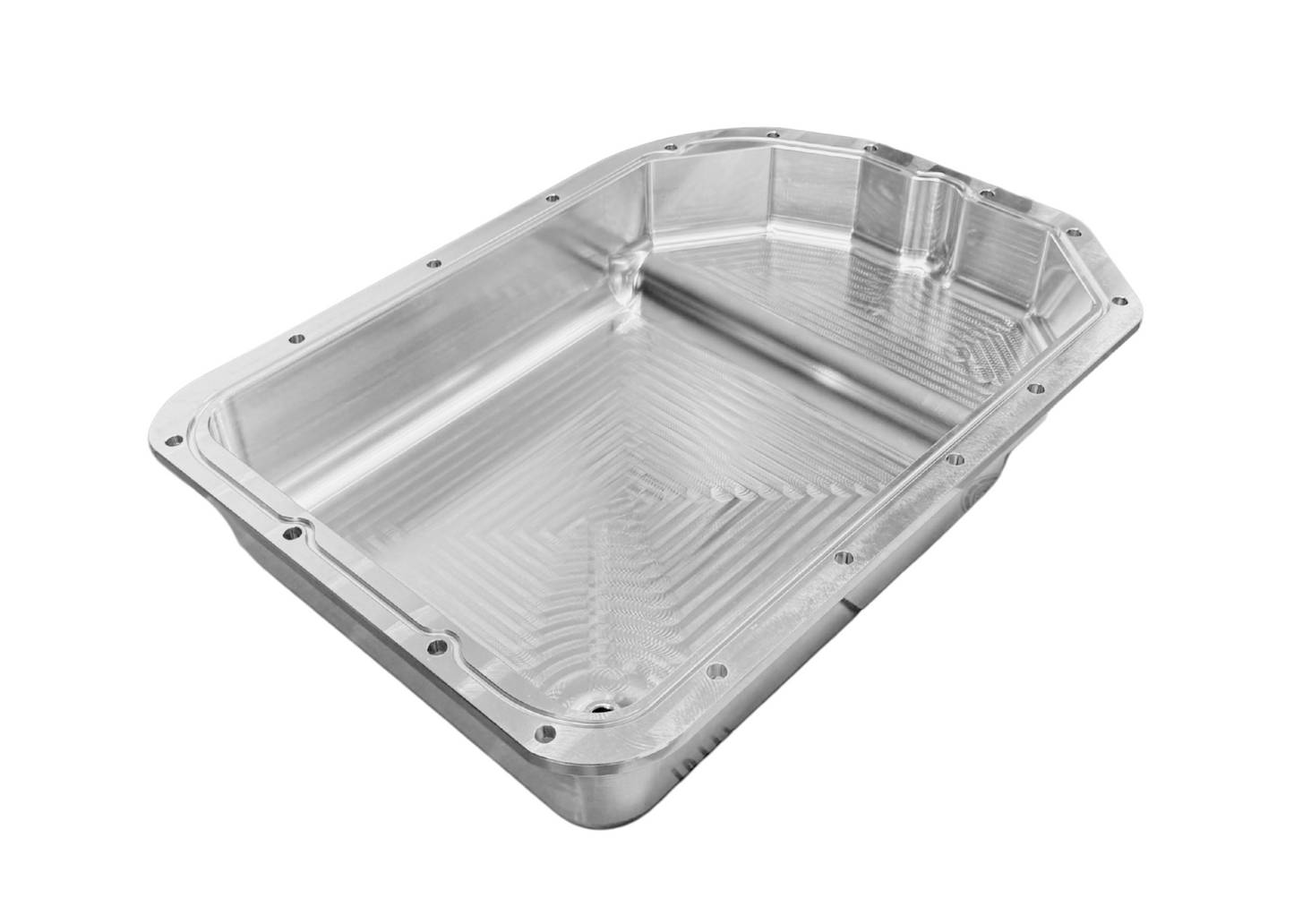

  • Billet 4L80E transmission pan tipped up to show the machined interior
  • Close view inside the 4L80E pan showing the machined ribs and the O-ring seal in its groove
  • Fitting note showing the filter neck shortened to the 0.50 inch dimension, OEM filter part number 34010E

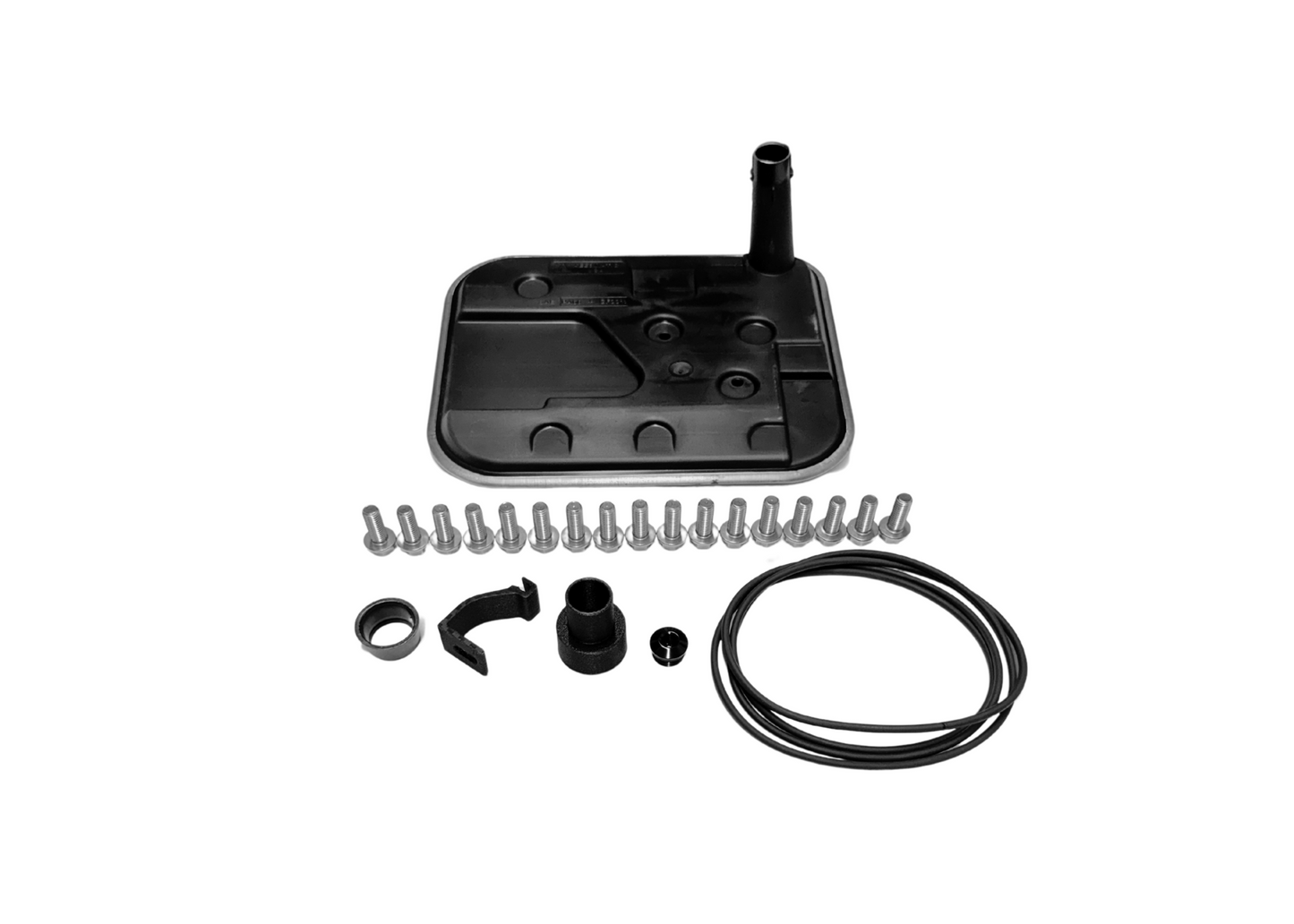

  • 4L80E pan kit contents laid out: filter, ARP bolts, drain plug and O-ring
  • CAD render of the billet 4L80E transmission pan

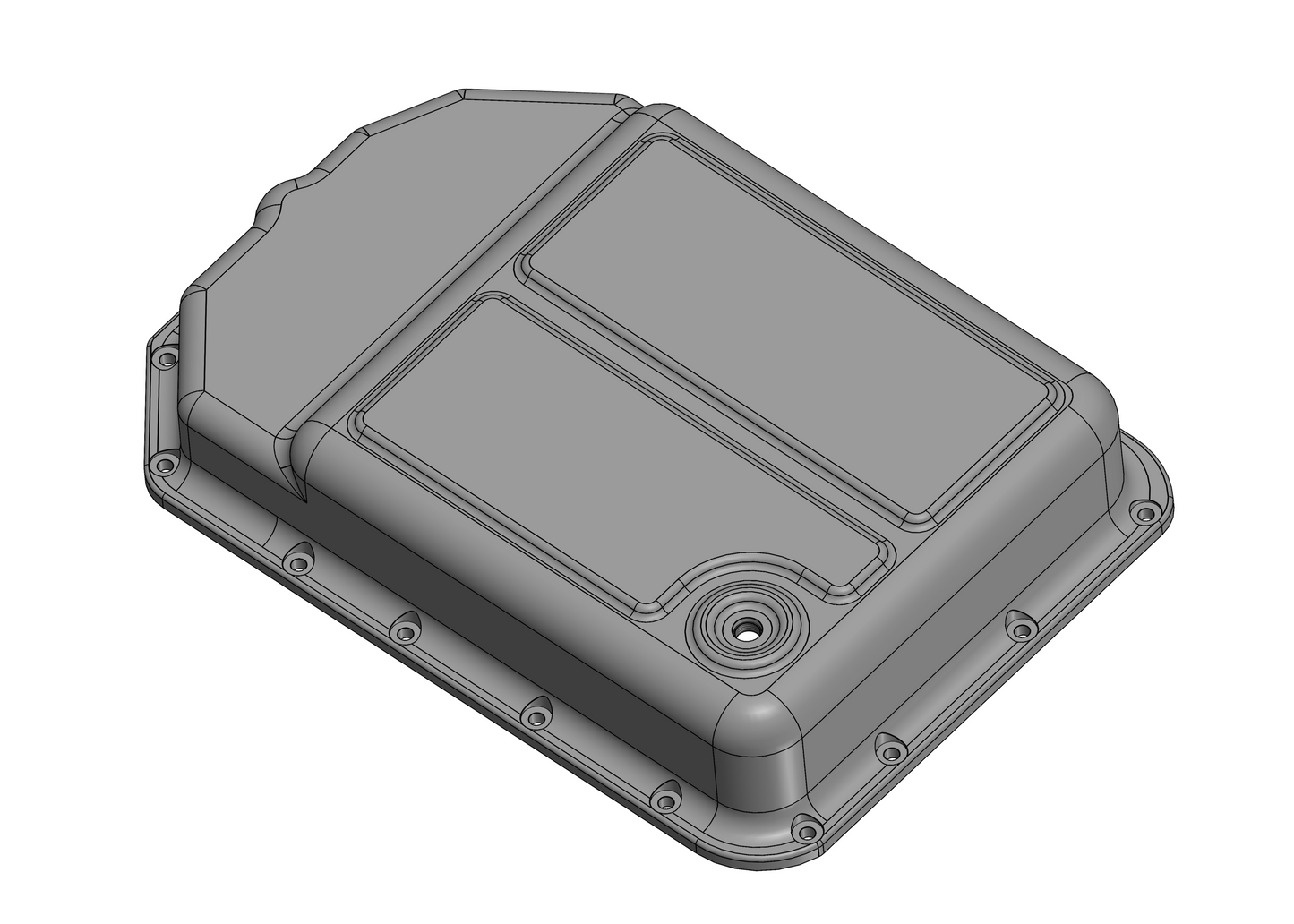

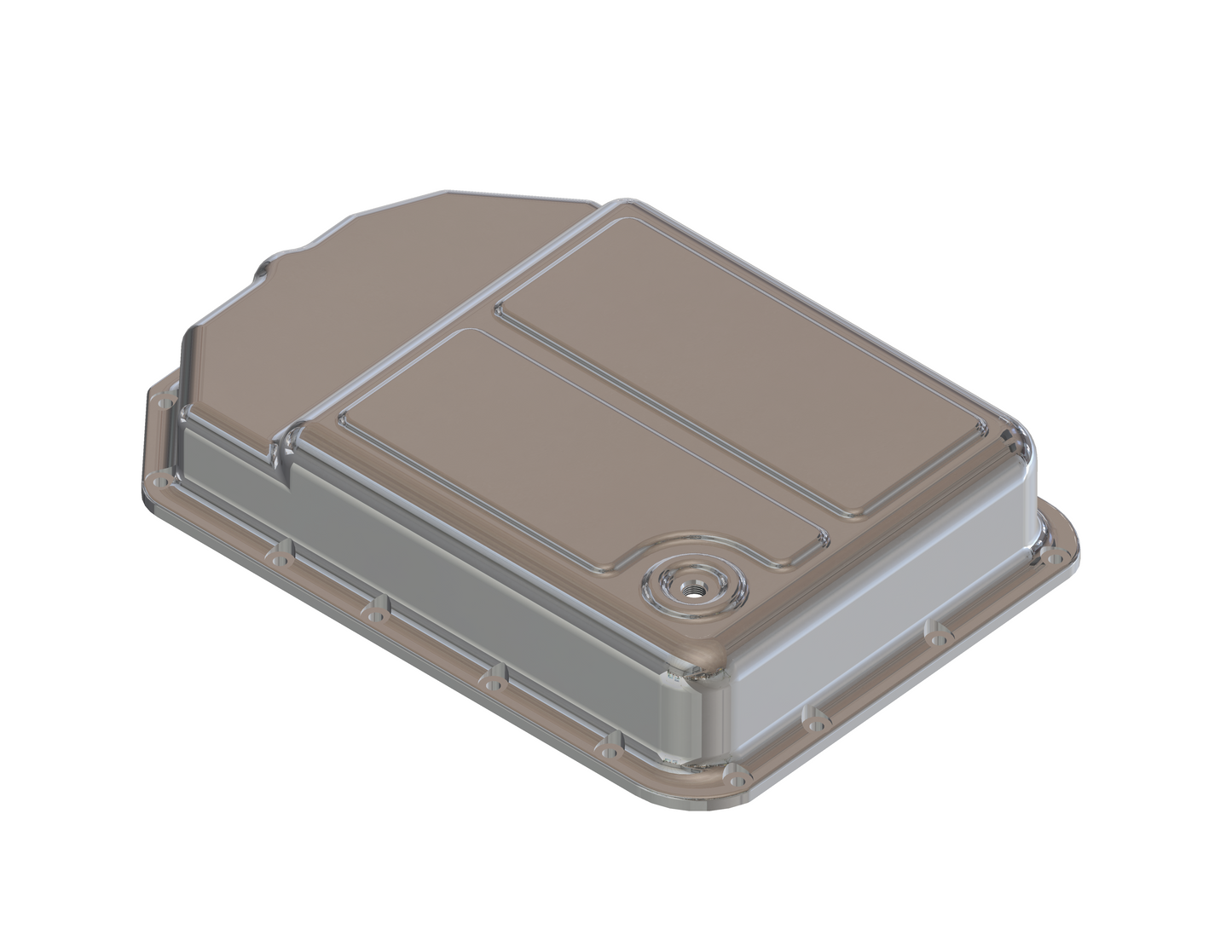

  • CAD render of the 4L80E transmission pan from a raised angle
  • CAD render showing the inside of the 4L80E transmission pan

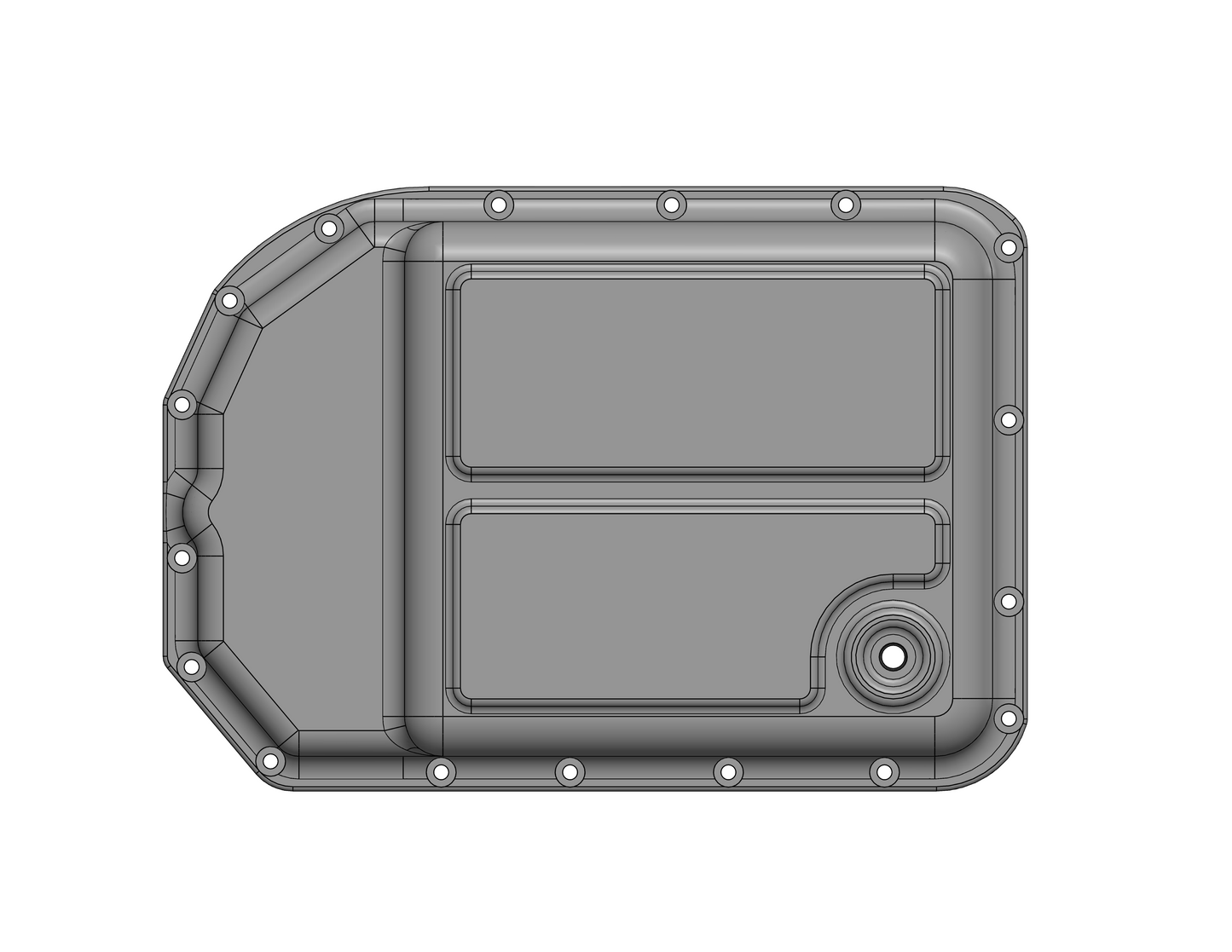

  • CAD top view of the billet 4L80E transmission pan
  • CAD side profile of the billet 4L80E transmission pan

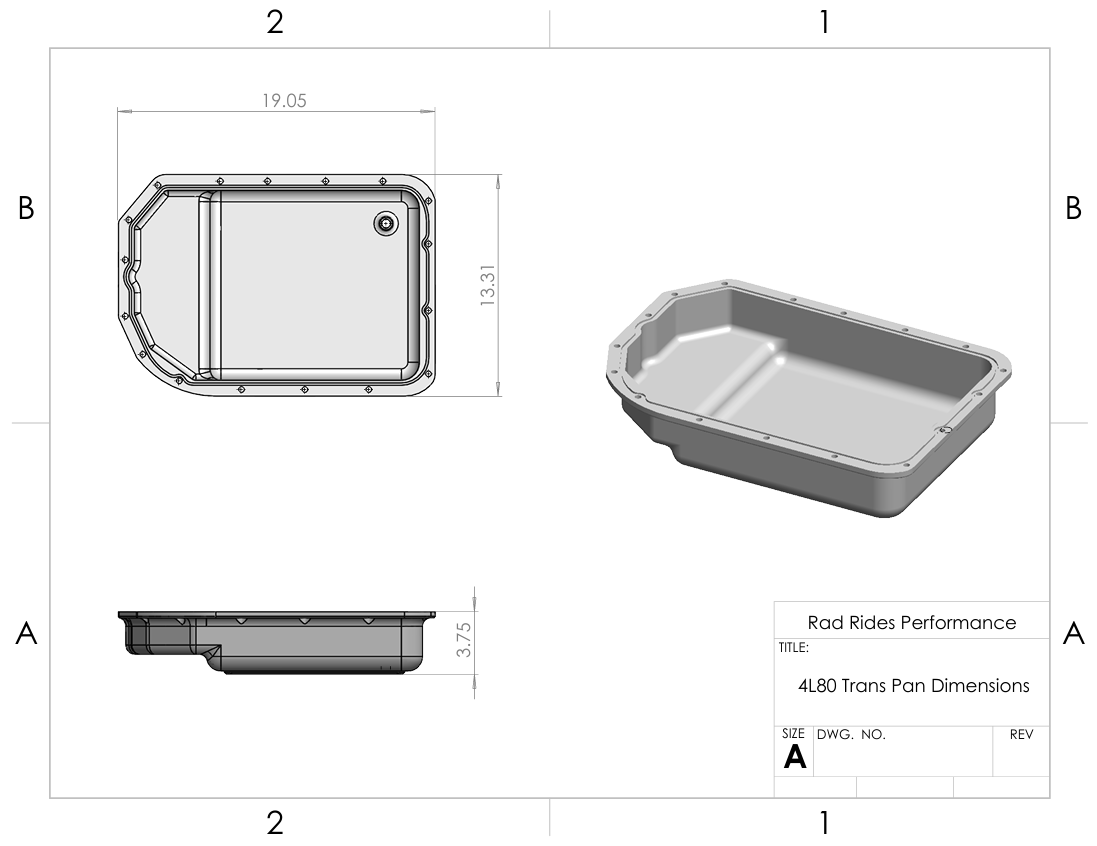

  • Dimensioned drawing of the billet 4L80E transmission pan

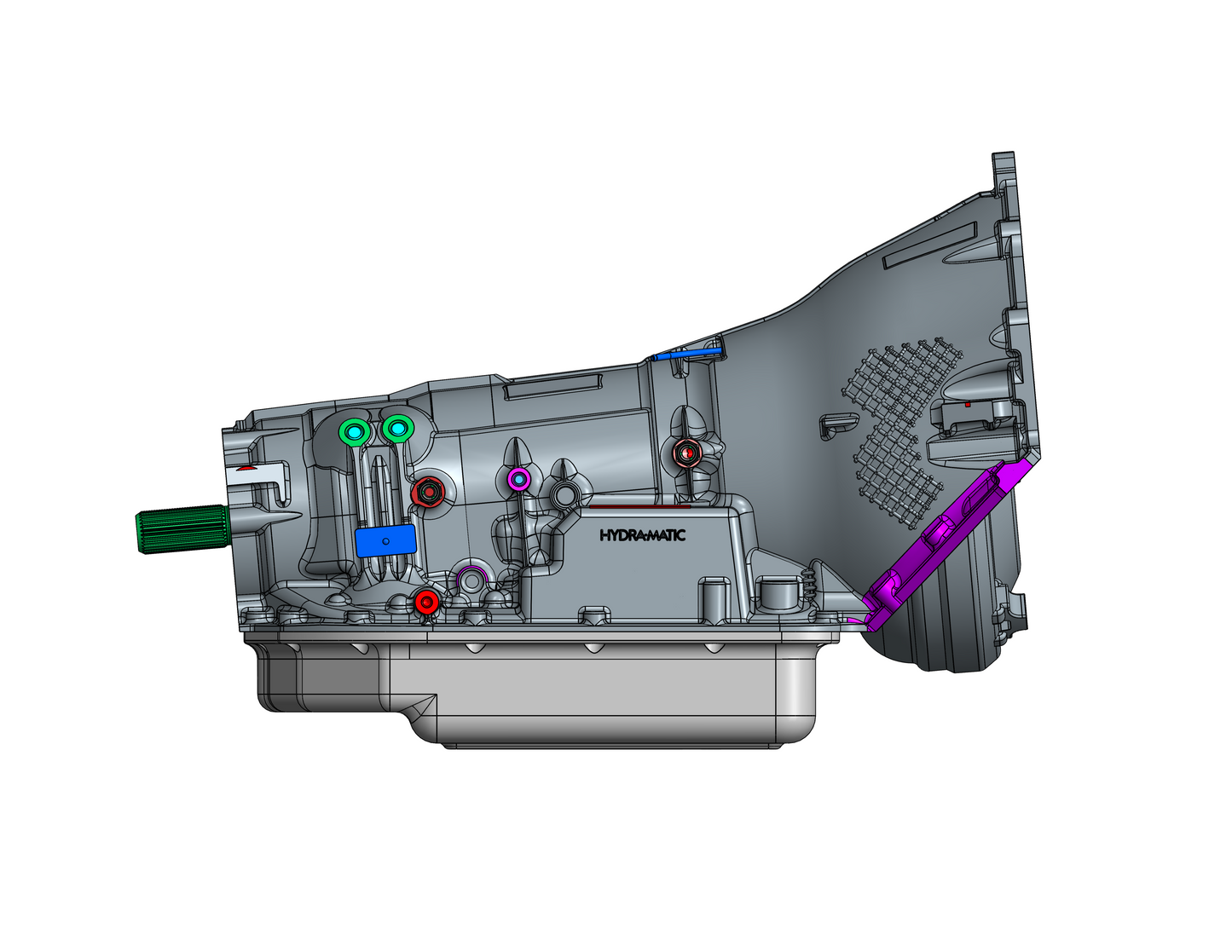

  • CAD render of the billet pan fitted to a 4L80E transmission

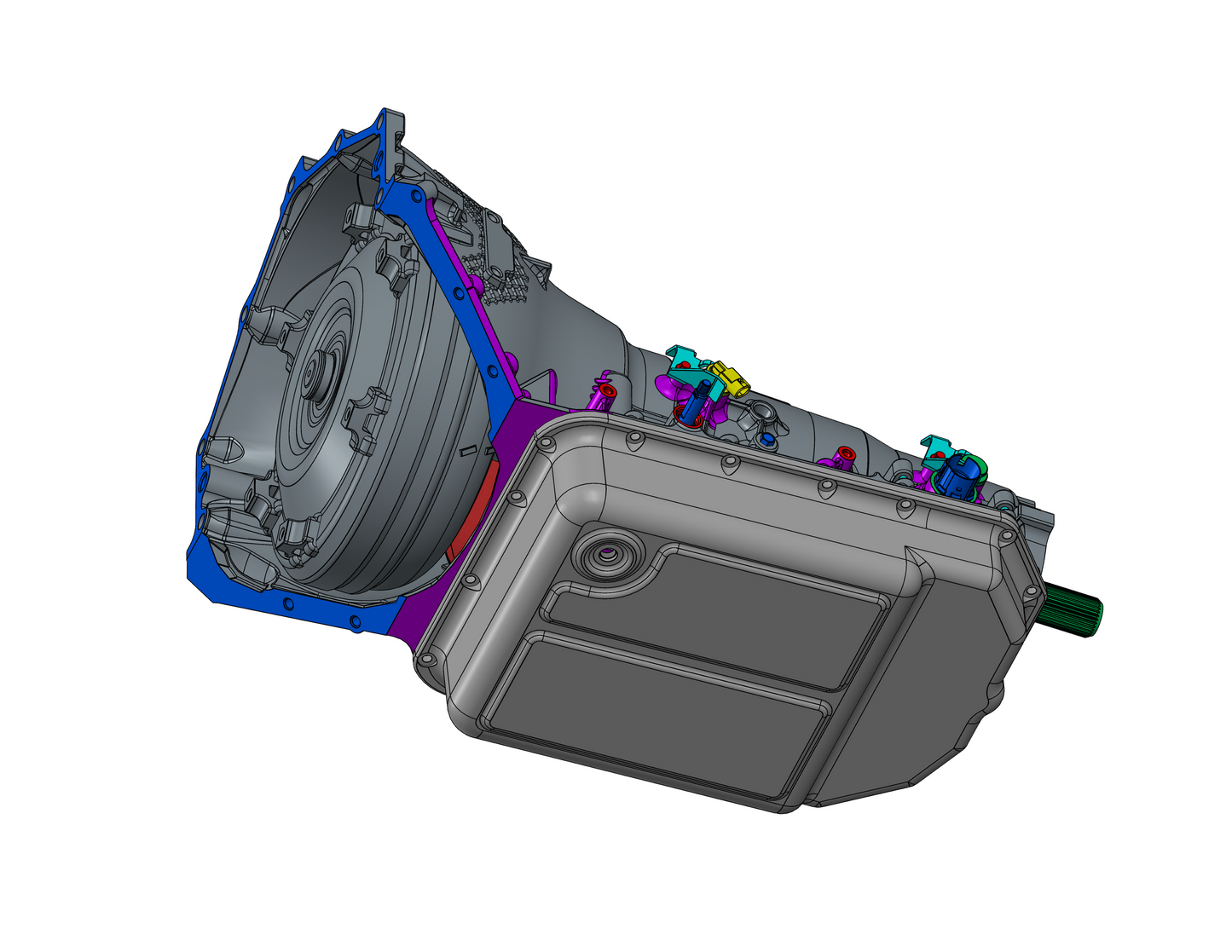

  • CAD side view of the billet pan fitted to a 4L80E transmission

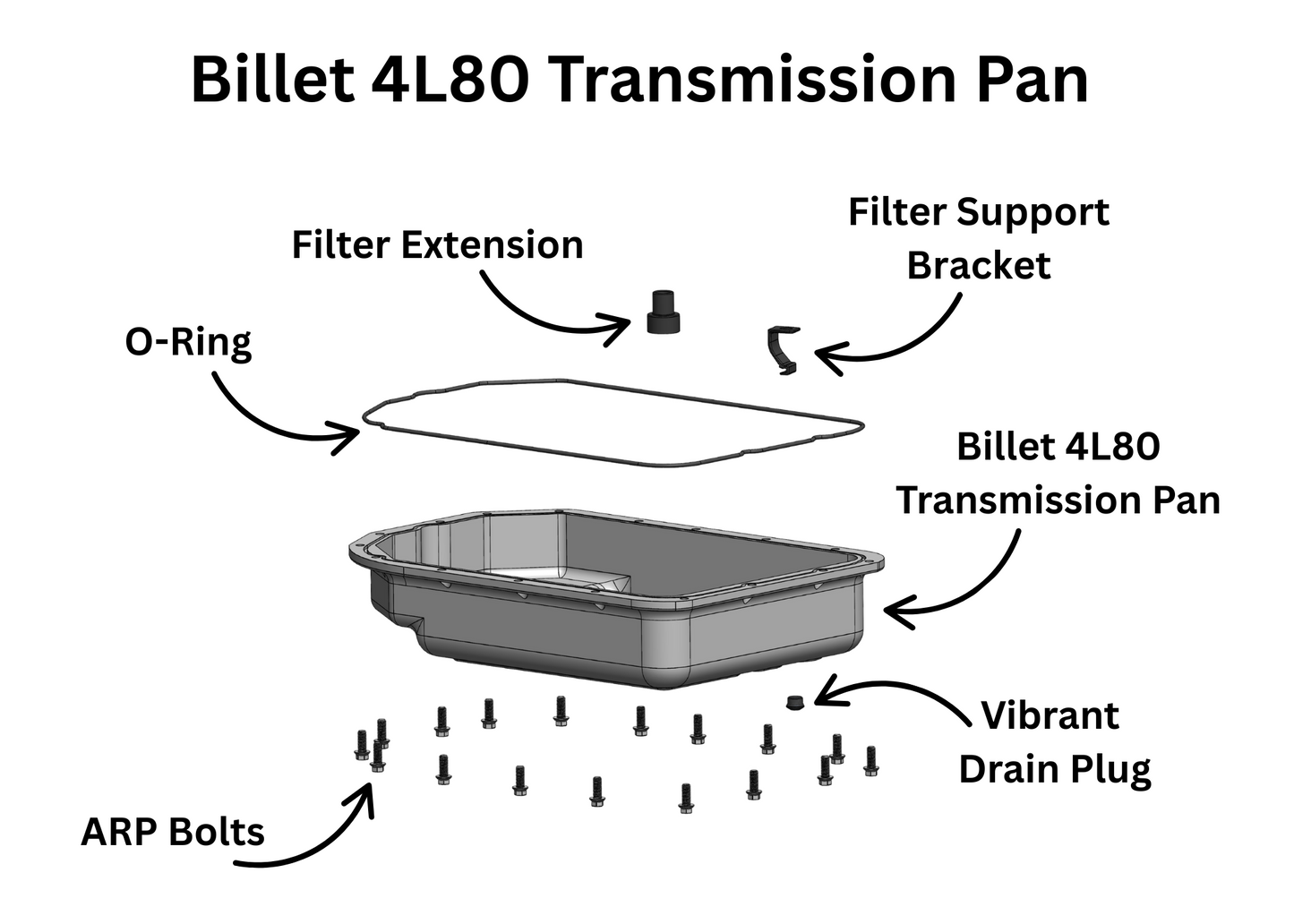

  • Labelled exploded diagram of the billet 4L80E transmission pan with the filter extension, filter support bracket, O-ring, Vibrant drain plug and ARP bolts
1 18

Rad Rides Performance Parts

GM 4L80E Billet Transmission Pan

GM 4L80E Billet Transmission Pan

$1,500.00
$1,500.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

Machined billet transmission pan for the GM 4L80E

Included

  • 6061 billet transmission pan
  • O-ring
  • Vibrant drain plug
  • 17 ARP bolts
  • Trans filter, filter boot, filter extension, filter support bracket

Specifications

  • Depth: 3.75 in.
  • Wall thickness: 3/16 in.
  • Drain plug for fluid changes without dropping the pan
  • Finish: raw machined

Fitment

GM 4L80E transmission.

View full details
